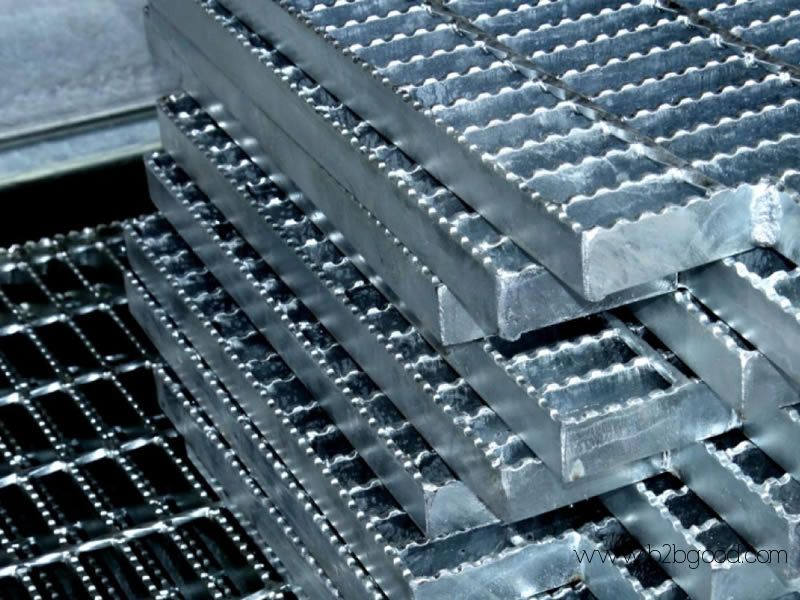

Steel grating is used for platforms, walkways, stair treads, trench covers, drainage covers, bridge side paths, and industrial flooring. It is made from bearing flat bars and cross bars by pressure welding or press locking. Common materials include Q235 low carbon steel, galvanized steel, and stainless steel. Alloy steel can be checked by order. Surface can be plain, serrated, or I-bar type. The most widely used finish is hot dipped galvanized for outdoor and humid environments.

Steel Grating is used for platforms, walkways, stair treads, trench covers, drainage covers, bridge side paths, and industrial flooring. It is made from bearing flat bars and cross bars by pressure welding or press locking. Common materials include Q235 low carbon steel, galvanized steel, and stainless steel. Alloy steel can be checked by order. Surface can be plain, serrated, or I-bar type (I-bar available by order). Hot dipped galvanized finish is often used for outdoor projects. Panel size, bearing bar size, bar spacing, cross bar spacing, surface type, finish, and edge banding should be confirmed according to span and load requirement.

Specifications

Product Name: Steel Grating, welded steel grating, galvanized steel grating

Material: Q235 low carbon steel, galvanized steel, stainless steel, or alloy steel by order

Bearing Bar: Flat steel bar

Common Bearing Bar Size: 20 x 3 mm, 25 x 3 mm, 32 x 3 mm, 40 x 3 mm, 20 x 5 mm, 25 x 5 mm, 32 x 5 mm, 40 x 5 mm, 45 x 5 mm, 50 x 5 mm, 55 x 5 mm, 60 x 5 mm

Cross Bar: Round bar, twisted square bar, square bar, or hexagonal bar

Common Bearing Bar Pitch: 30 mm, 40 mm, 60 mm

Common Cross Bar Pitch: 50 mm or 100 mm

Grating Type: Welded grating, press locked grating, dense grating, trench cover, stair tread

Surface Type: Plain surface, serrated surface, or I-bar type by order

Finish Treatment: Hot dipped galvanized, electro galvanized, painted, anti-rust oil, or black untreated surface by request

Code Reference: Example: G325/30/100 usually means 32 x 5 mm bearing bar, 30 mm bearing bar pitch, and 100 mm cross bar pitch. Some codes may vary by market, so drawing confirmation is recommended.

Panel Size: Made according to project drawing or cutting list

Edge Banding: Flat bar banding available by order

Use Note: Load capacity depends on bearing bar size, grating span, support condition, bar spacing, and installation method. Please confirm load and span before production.
