brand:ZhongPu
Deliver goods:3 days after paydown
Send an inquiry

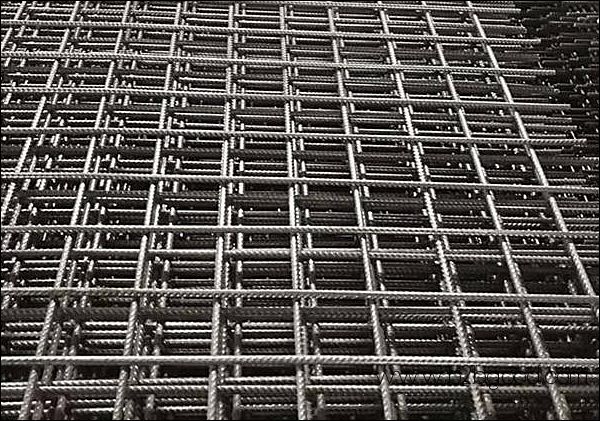

ZhongPu Wire Mesh Co. , Ltd. offers welded wire mesh produced by precision welding galvanized, stainless steel, or PVC-coated wires into uniform square or rectangular grids. Used for security fencing, concrete reinforcement, gabions, industrial filtration, and agricultural enclosures, it also functions as protective guards for buildings, factories, trees, and plants. The mesh provides strong structure, high visibility, and corrosion resistance. Specifications include wire diameters of 0. 5–6 mm, mesh openings from 6×6 mm to 200×200 mm, and gauges from 8 to 24, available in rolls or flat panels for construction and infrastructure projects.
We supply hot-dip zinc plated welded wire mesh panels for construction, fencing, industrial use, and general reinforcement. All panels feature a strong welded grid structure, corrosion-resistant galvanized coating, and consistent center-to-center spacing for reliable performance.
Welded Wire Mesh 1" × 1" × 0. 08" × 48" × 100' refers to a standard welded wire fencing and screening material made from low-carbon or galvanized steel wire. The mesh is formed by welding horizontal and vertical wires at each intersection to create a rigid sheet suitable for construction, agriculture, animal cages, security screening, and industrial applications.
| Item | Inch (in) | mm |
| Mesh Opening | 1" × 1" | 25. 4 mm × 25. 4 mm |
| Wire Diameter | 0. 08" | 2. 03 mm |
| Roll Width | 48" | 1200 mm |
| Roll Length | 100' | 30 m |
We supply hot-dip zinc plated welded wire mesh panels for construction, fencing, industrial use, and general reinforcement. All panels feature a strong welded grid structure, corrosion-resistant galvanized coating, and consistent center-to-center spacing for reliable performance.
Standard Welded Wire Mesh Panel Specifications
- 12 mm Center Spacing Panels
Center-to-center distance: 12 mm
Panel size: 4 ft × 10 ft
Wire diameter: 14 gauge - 50 mm Center Spacing Panels
Center-to-center distance: 50 mm
Panel size: 4 ft × 10 ft
Wire diameter: 2. 3 mm - Combination Spacing Panels (12 mm to 50 mm) – 18-inch Width
Center-to-center distance:
12 mm spacing from 0–6 inches of panel width
50 mm spacing from 6–18 inches of panel width - Panel size options:
18 inches × 10 ft
18 inches × 2 ft
Wire diameter: 2. 3 mm
