In the field of modern mining and heavy industry, the blockage stoppage and high-risk crushing operations have long been restricting the production efficiency and safety level. YZH has launched BAN310 Grizzly Boom System, which has become the key technical equipment to solve these pain points with the core breakthroughs of intelligent control, heavy-duty crushing capacity and extreme environmental adaptability. This article will deeply analyze the innovative design, performance advantages and industry application value of this equipment.

Its working system consists of four major modules:

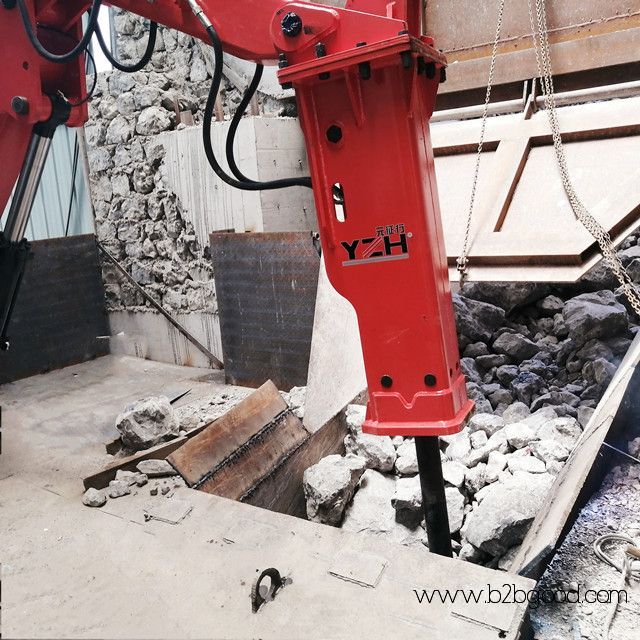

ydraulic Crushing Hammer (performs crushing, brazing rod diameter 75-175mm adjustable)

Large/small arm working system (made of high-strength rectangular steel with cushion brake)

Electro-hydraulic Power Station (power 30-75kW, accurately matching the load demand)

Intelligent Control System (supports 10-20km remote control and multi-parameter fusion)

Innovative Design and Technological Breakthroughs

1. Intelligent control system

Ultra-long-distance precise operation: integrating video monitoring and remote control technology, the operation radius reaches 10-20km, realizing the “man-machine separation” operation in the high-risk area underground.

Flexible positioning and striking: Equipped with high-performance controller, it supports millimeter-level positioning and multi-angle continuous striking of the crushing hammer, and reduces ineffective impact by more than 40%.

Extreme working condition adaptation: optional low-temperature heating/high-temperature heat dissipation module can be installed to adapt to the environment from -30℃ to 80℃, which can meet the special scenarios such as high-altitude mines and metallurgical high-temperature zones.

2. Heavy-duty structure and reliability enhancement

Impact-resistant design: adopting thickened pin, large-diameter hydraulic cylinder and high-performance vibration damping system, it effectively disperses the impact load and extends the life of the whole machine by 30%.

International core components: key hydraulic components are selected from brand names, guaranteeing 20,000 hours of trouble-free operation.

Modular expansion capability: the front-end can quickly replace the crushing hammer, hydraulic shear or grapple to realize multi-functionality (crushing, unpacking, slag clearing multi-functional).

3. High-efficiency power and energy-saving environmental protection

Pure electric drive advantage: compared with the traditional diesel equipment, energy consumption is reduced by more than 60%, noise is reduced by 50%, and zero emissions are realized.

Energy efficiency optimization system: dynamic matching between hydraulic station and crushing hammer, avoiding empty energy consumption, the cost of single ton crushing is only 1/6 of excavator.

Performance Advantages and Economic Benefits

1. Revolutionary increase in production efficiency

Reduce 90% of downtime for clearing blockage, and increase the production capacity of crushing line by 15-20%.

Failure rate is 85% lower than that of diesel equipment, supporting year-round operation.

2. Double optimization of safety and cost

Completely eliminates high-risk operations: remote control avoids manual contact with high-temperature slag, falling rocks in mines, and other risks.

Full-cycle cost advantages:

Maintenance costs are reduced by 40% and spare parts replacement intervals are extended by two times

Protecting crusher liners extends the life of the mainframe by 30% and reduces wear and tear costs

Application Scenarios and Typical Cases

1. Mines and Quarries

Blocking and Unblocking: In a gravel aggregate plant in Anhui, BAN310 was installed to solve the problem of gyratory crusher jamming, reducing downtime loss by 500 hours per year.

Secondary crushing: replacing the blasting process to deal with oversize ores, reducing safety risks and environmental approval costs.

2. metallurgy and foundry industry

High-temperature slag treatment: a steel plant adopts BAN310 to remotely crush 1500℃ steel slag, avoiding manual near-front operation and reducing 3 safety accidents per year.

Scrap steel pretreatment: crushing scrap car skeleton, enhance the efficiency of electric furnace feeding by 30%.

3. Cement Plant and Underground Mine

Silo Slabbing Clearance: Shandong Cement Plant removes cement slabs from 10,000 tons silo by BA300 to ensure continuous material supply.

Slideway lattice screen clearing: In Inner Mongolia underground mine, BAN310 completes the lattice screen dredging in the unventilated operation area, and the production efficiency is improved by 25%.

Summary and Purchasing Suggestions

BAN310 Grizzly Boom System  has become the core equipment for upgrading mining heavy industry through intelligent control, heavy-duty reliability and super adaptability. Its modular design supports in-depth customization - from 4880mm basic arm span to 20.4m ultra-long operating range, and it can operate stably from -30℃ cold mines to high-temperature zones in steel mills, highlighting the boundary breakthrough in engineering design.

Key points for purchasing decision:

Work condition adaptation: installation location dimensions, material hardness and voltage level need to be provided, and the manufacturer supports customized design.

Service guarantee: Yuanzheng provides turnkey services, including installation and commissioning, operation training and 24-hour emergency support.
This equipment not only represents the upgrade of technical tools, but also promotes the transformation of the mine production mode to "unmanned, zero casualties, and full continuity" - in the eternal game of efficiency and safety, the optimal solution is given.
