brand:Allegro MicroSystems
Operating Supply Voltage:3V
Minimum Operating Temperature:- 20 C
Mounting Style:SMD/SMT
Set up:30pcs
supply:1520pcs
Deliver goods:3 days after paydown
Purchase immediately

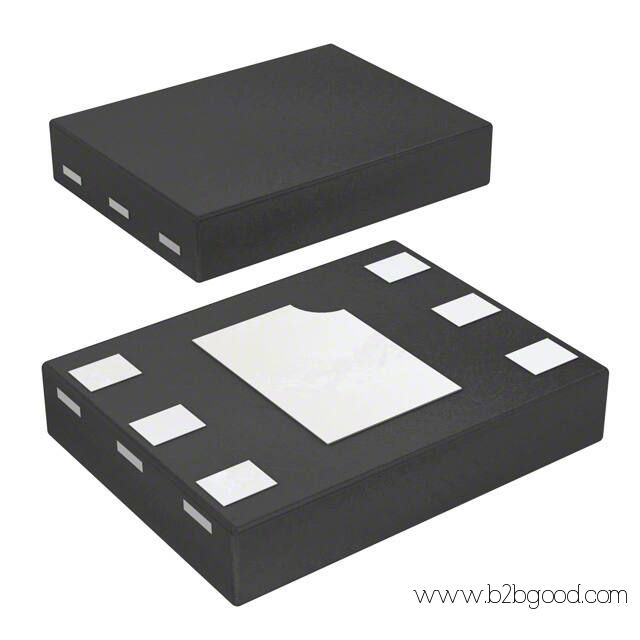

The A1393SEHLT-T is a high-precision, micropower Hall-effect sensor IC designed for accurate magnetic field sensing applications. This sensor provides a digital output signal based on the presence of a magnetic field, making it suitable for various position and proximity sensing tasks.
Pinout
(Note: The pin configuration below is a general representation. Refer to the specific datasheet for precise details.)
- VCC: Power Supply Voltage
- GND: Ground Connection
- VOUT: Digital Output
- VEE: Negative Power Supply
- NC: No Connection
Circuit Diagram
Include a circuit diagram illustrating the connections and operation of the A1393SEHLT-T Hall-effect sensor IC for a better understanding of its usage.
Key Features
- High Precision Sensing: The A1393SEHLT-T offers accurate sensing of magnetic fields, providing reliable position detection.
- Micropower Operation: This sensor operates at low power levels, making it suitable for battery-powered devices and energy-efficient applications.
- Digital Output: The sensor provides a digital output signal, simplifying integration with digital circuits and microcontrollers.
- Wide Operating Voltage Range: Supports a wide voltage range for flexible compatibility with various systems and power supplies.
- Compact Package: Available in a compact and space-saving package for easy integration into small electronic designs.
Note: For detailed technical specifications, please refer to the A1393SEHLT-T datasheet.
Application
- Position Sensing: Ideal for detecting the position of moving parts in industrial and automotive systems.
- Proximity Detection: Suitable for proximity sensing applications, such as detecting the opening and closing of doors or covers.
- Magnetic Field Detection: Used in robotics and automation for detecting magnetic fields and orientations.
Functionality
The A1393SEHLT-T Hall-effect sensor IC detects the presence of magnetic fields and provides a digital output signal based on the intensity of the field. It offers accurate and reliable magnetic field sensing for various applications requiring position or proximity detection.
Usage Guide
- Power Supply: Connect VCC (Pin 1) to the power supply voltage and GND (Pin 2) to the ground connection.
- Digital Output: Monitor the digital output signal VOUT (Pin 3) to detect the presence of magnetic fields.
- Negative Supply: Connect VEE (Pin 4) to the negative power supply if required by the application.
