YZH Pedestal Boom System
2025-06-25 11:49
Price:$70000.00/set
brand:YZH
Boom weight(without hammer):3248kg
Max.Horizontal Working radius:9000mm
Max.Vertical Working radius:7150mm
Set up:1set
supply:50set
Deliver goods:3 days after paydown
Purchase immediately

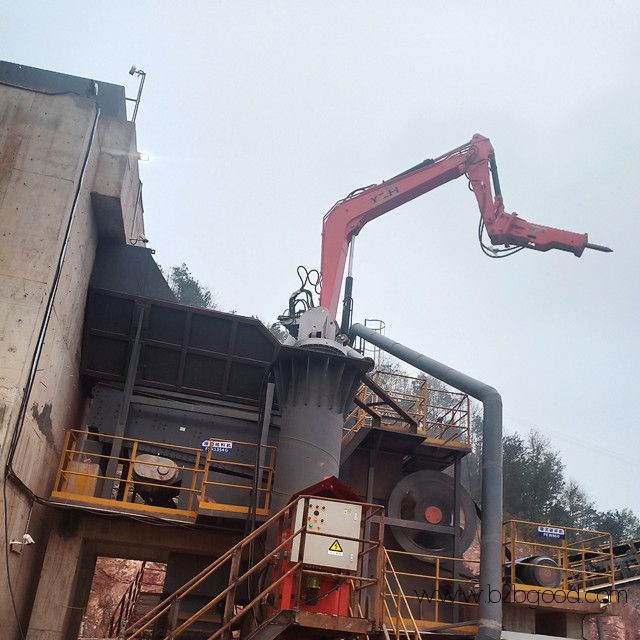

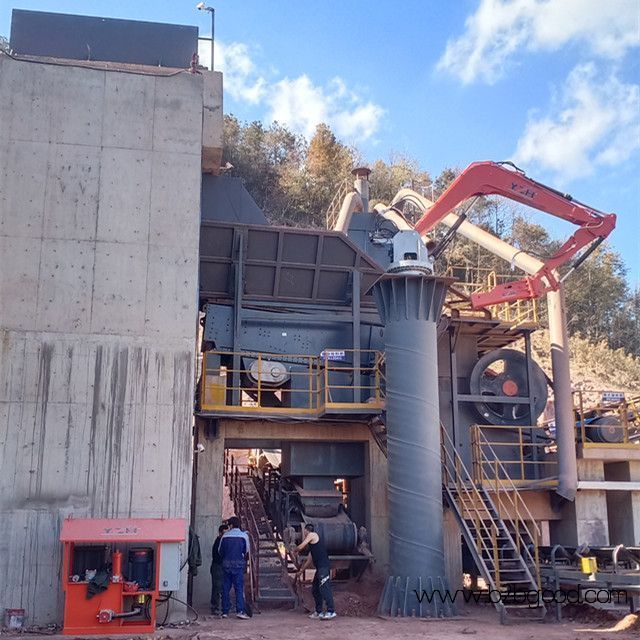

 YZH Pedestal Boom System

The china Pedestal Boom System independently manufactured and developed by Shandong YZH is mainly used in mobile crushing stations for open-pit quarries, underground mine grid feeding ports, sand and gravel aggregate yards, as well as feeding hatches for crushers, casting yards, dock loading and unloading yards, etc. The china Pedestal Boom System  mainly consists of four parts: hydraulic crushing hammer, large and small arm operating system, hydraulic oil station, and controller.
rockbreaker boom system
Hydraulic fracturing hammer is in direct contact with stones. To ensure the strength and hardness of the fracturing hammer and drill rod, it is necessary to strike hard stones into appropriate sizes or penetrate walls. The large arm and small arm working system is a bridge connecting the base and the crushing hammer, and it is also an arm for carrying out work. Collaboration between the upper and lower arm systems not only expands the scope of work, but also makes the entire workflow more flexible. The hydraulic oil station is the power source of the entire system. The hydraulic station uses both electric and hydraulic power, which not only ensures endurance but also has certain environmental protection functions. The last part is the control system, which can be called a remote control. Our china fixed boom is configured with three operating systems:2in1 radio remote control、cabin control system、5G optical fiber teleoperation system.

Technical Parameters:

Model number is WHB710, working arm weight without hammer 3248kg, max working radius 9000mm, max vertical working radius7150mm, min vertical working radius 2440mm, max height 6000mm, max working depth 6740mm, swinging arm angle 360 degrees.

Purchase Notice:

Warranty period: 1 year

After sales service: During the warranty period, if there are quality issues, we will be available on call

Transportation methods: Various transportation methods are accepted

Packaging method: Suitable for various types of transportation
