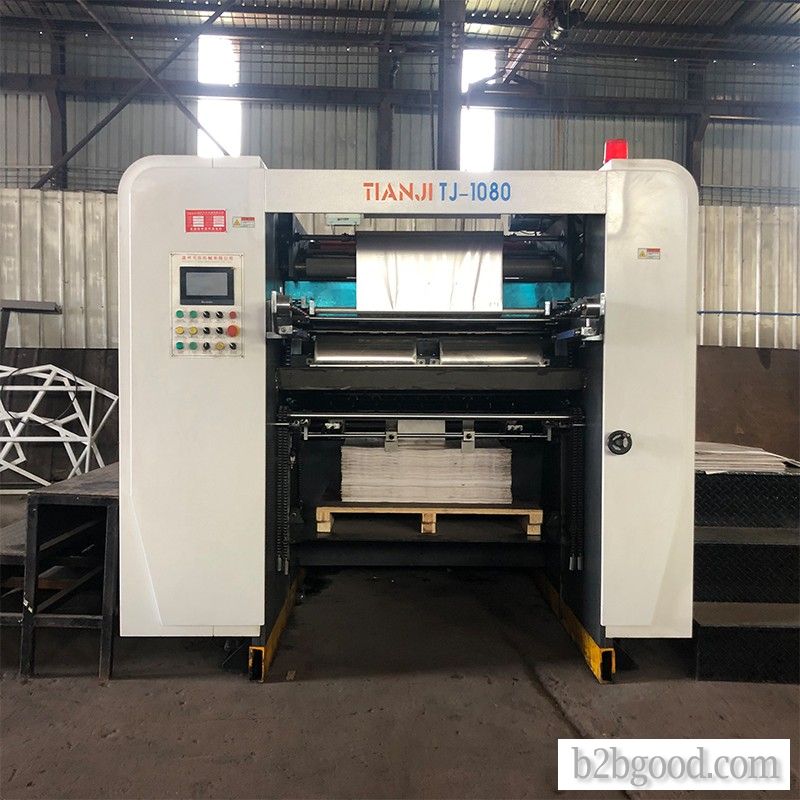

Maximum paper size: 1080*780mm Minimum carton size: 400*360mm Maximum Hot stamping size: 1050*750mm paper thickness: 120-1500g/ m2 Cardboard & corrugated Cardboard thickness: ≤4mm 120-1500g/ m2 Cardboard Corrugated board 4 mm or less minimum waste removal 8 mm wide maximum speed of 4800 sheets/h maximum leaf length 1000 mm hot stamping pressure above 300 t the pile of paper height 1300 mm paper biggest height 1000 mm total weight 9 t size 4600 * 22500 * 1850 mm heating temperature zone 6 hot stamping temperature range 50-200 ℃ air required to 0.8 Mpa. After acuity 0.6 m/min horizontal foil roll width is 15-650 cm Put foil horizontal axis 2 longitudinal foil roll width 15-1080 - cm put foil longitudinal axis 2 minimum foil roll of 180-200 - mm diameter where the tooth size 8 machine appearance size 5000 * 2200 * 2000 mm on the right pedal 750 mm on the left pedal 950 mm with high-end imported materials, 4 feed servo motor with high precision, good stability, durability, quick adjustment, the thickness of paper is suitable for, greatly improving the efficiency savings artificial bronzing
