Type and name

QS-210S Salt Spray Testing Machine

Standard

Inner case size: 900 times; 600 times; 500mm (wide * Deep * high) (can be customized according to customer requirements)

Shell size: 1400x1280x880mm (width * depth * height)

Power supply: single-phase 220V 2KW 50Hz

III. Technical Basis

According to JIS, ASTM, CNS, GB standard parameters for operation settings

Salt spray test: NSS, ACSS

1 laboratory: 35 and plusmn; 1 C fluctuation: and le; and plusmn; 0.5 uniformity: and le; 1 C fluctuation: and le; and plusmn; 0.5 uniformity: and le; and 1 C fluctuation: and le; and plusmn; and 0.5 uniformity: and le;

2. Saturated air barrel: 47C and PLUSSMN; 1C

B Corrosion resistance test: CASS

1 laboratory: 50 and plusmn; 1 fluctuation: and le; and plusmn; 0.5 uniformity: and le; 1.

2 saturated air drums: 63 C and PLUMN; 1 C

IV. Body Structure

1 Material for Use

1. The cabinet body of the test machine is made of light gray PVC board with a thickness of 5mm and a temperature resistance of 85 ("Taiwan South Asia Brand").

2. The seal of the laboratory cover is made of 5 mm acrylic transparent plate, which will not deform at high temperature. Inner and outer edges

Thickening layer can prevent deformation due to long-term high temperature. Thickness 15mm

Three hidden one-to-one auxiliary bottles are convenient for cleaning and operation.

4. The best thermal insulation effect of saturated air duct is SUS stainless steel high pressure pipe (Taiwan Exhibitor Heating)

5. The test-bed adopts 8 mm temperature-resistant ABS plate, which has strong bearing capacity. The plane indexing formula is used in the test bench.

Arbitrary adjustable angle, uniform dropping of fog on each side, complete consistency of fog, accurate test results, sample placement

There are many. (customizable according to customer product requirements)

2 spray system

A Salt water is absorbed by Bernoutt principle and atomized. The atomization degree is uniform and does not hinder the crystallization. This is guaranteed.

Continuous test standard

B nozzle: a special glass nozzle can be used to adjust the spray size and spray angle.

C spray volume can be adjusted from 1 to 2mL/h (mL/80cm).^Two/ The H standard requires 16 hours of testing to find the average. Metering barrel collection

Built-in installation, beautiful and neat appearance, convenient observation, reducing the installation space of the instrument.

D spray mode: continuous spray (indirect)

3. Air supply system

The first paragraph was roughly adjusted to 2 kg/cm.^TwoInlet air filter with drainage function

The second stage is precisely adjusted to 1 kg/cm.^Two,^One/_FourPressure gauge, accurate display

4 heating system

Direct heating mode is adopted with fast heating speed and short standby time. When the temperature reaches, the constant temperature state is automatically switched.

State, accurate temperature, less power consumption. Pure titanium heating tube, acid and alkali corrosion resistance, long service life

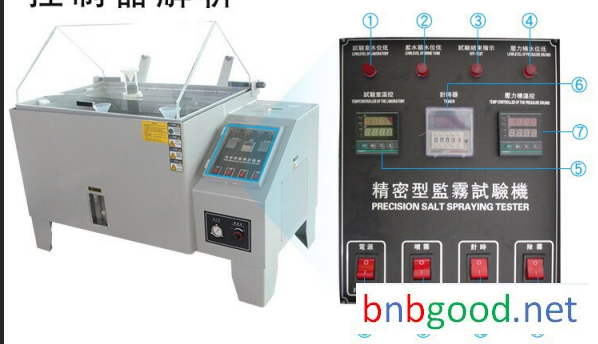

5 control system

Both laboratory and pressure barrel adopt LCD dual-position temperature controller, which has the function of automatic calculation by computer.

The 1.0C circuit board is moisture-proof and anti-corrosive, with high precision and long service life.

B Laboratory Heating Tank 0-120 C Using Liquid Expansion Safety Temperature Controller (Italian EGO 1 Branch)

C time controller, power off memory function 0.01S-999.9HR (Omron 1, Japan)

D Relay (Japan Omron Group 1)

E with light switch, can work 25,000 times continuously.

V. Safety Protection Devices

1. The power supply is cut off automatically at low water level, and the safety warning lamp device is on.

2. When the temperature is too high, the heater power supply is automatically cut off and the safety warning lamp device is on.

Three. When the water level of the tested drug (brine) is low, the safety warning lamp device lights up the alarm.

4. Leakage protection function to prevent personal injury and instrument failure caused by leakage or short circuit

VI. Water Supply System

Automatic and manual water injection systems are used to automatically or manually replenish the water level of pressure barrels and laboratories to prevent water shortage.

Ultra High Temperature Damage Instrument

7. Mist removal system

During the test, the salt spray in the test chamber is cleaned and closed to prevent the corrosive gas flow from damaging other precision instruments in the laboratory.

Eight. Standard configuration

One

IX. Random Accessories

Sodium chloride (NaCl) 500 g 2 bottles

Operation instructions and a warranty card

5L plastic measuring cup 1

Saltwater hydrometer

Commentary:

When purchasing the above equipment, an additional air compressor (1-5Kg/cm2) should be provided.
