brand:Winner
Weight:388kg
Dimensions:2410×1650×1580 mm
cvVibration Frequency:1450 times /min
Set up:1Set
supply:150Set
Deliver goods:30 days after paydown
Easy maintenance slurry vibrating screen for sale
Product overview:
1. Drilling mud vibrating screen is the core equipment used for drilling mud purification.
2. According to the actual use of drilling engineering, combined with on-site practical experience, developed a flexible and efficient simple drilling mud shaker.
3. Through the field application, received a good effect.
Product Applications:
Suitable for mine drilling fluid purification, drilling fluid vibrating screen can also be used as the bottom of the mud cleaner vibrating screen.
Operating principle:
Drilling mud vibrating screen is a solid control equipment in the drilling mud solid control system, is to deal with the back from the bottom of the mud up to 0.074 mm above the solid particles of mud.(Solid phase with drilling fluid greater than 0.074 mm is not good for drilling fluid performance.) The device uses a vibration motor, according to the principle of self-synchronization to achieve a sieve box in a certain direction of linear motion.
Technical parameter table:
|
Vibration Frequency |
1450 times /min |
|
Amplitude |
2.4mm |
|
Processing Capacity |
50m³/h |
|
The largest particles under the screen |
74 μm |
|
Screen Area |
1.1m² |
|
Dimensions |
2410×1650×1580 mm |
|
Weight |
388kg |
Advantage:
1. Using solid works design, optimize the structure, simple structure, high performance.
2. High vibration intensity, large screen area, adjustable screen box angle.
3. Replacement is simple, save time, save labor costs.
4. The height of the unit is rationally designed to reduce the direct impact on the screen.
5. Lift structure is simple, easy to operate.
6. Than the average linear vibrating screen, processing capacity increased by 20% -30%, sand removal chip removal rate increased by 10% -20%.
Structure:

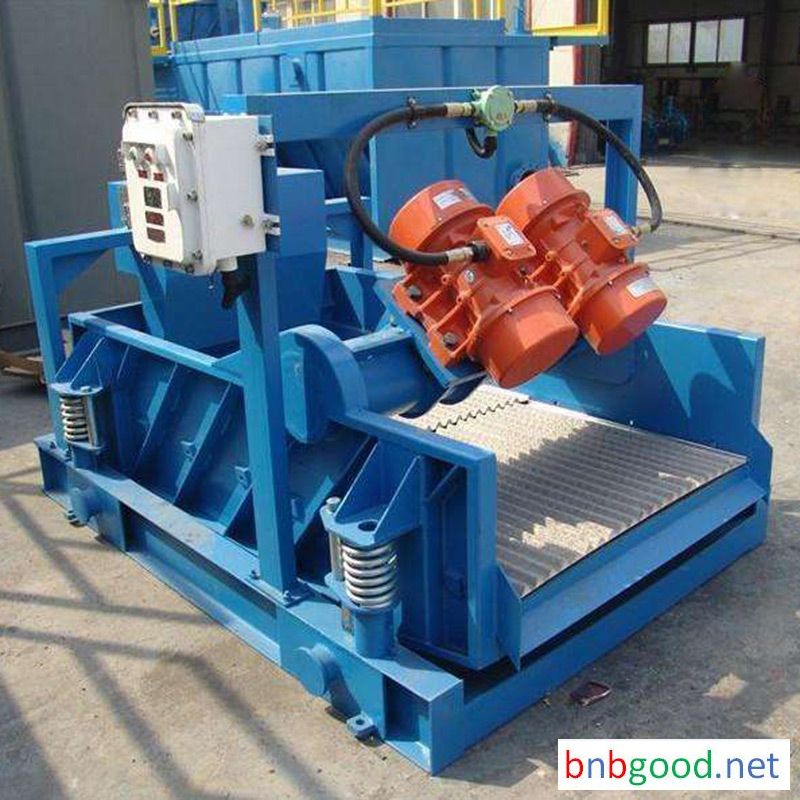

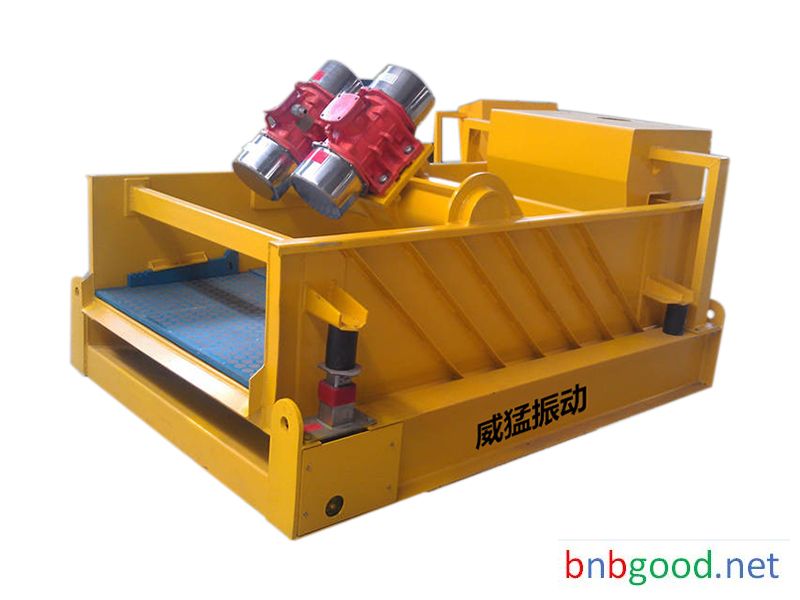

Slurry vibrating screen is mainly composed of hydraulic lifting device, vibration motor, screen box, explosion-proof switch, base, logging well, screen and other components.
1.Slurry vibrating screen box:Screen box screen, horizontal tension, using bolts tighten. Safe and reliable damage to the screen is not easy, this structure is reliable, easy to operate.
2. Slurry vibrating screen power unit: composed of two exciting motors and excitation beams, easy installation and maintenance.
