brand:HAIWEI
color:yellow and white
feeding lenght:9999.99 mm
material width:300 mm
Set up:1set
supply:99set
Deliver goods:3 days after paydown
Purchase immediately
===under info was translated buy computer===

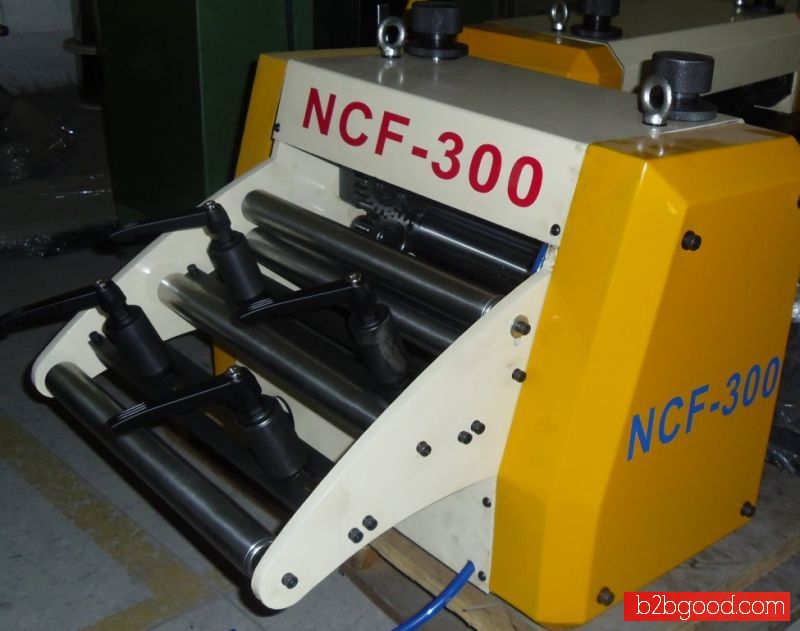

NC servo roll feeder machine
main features :
1.high precise feeding : aiming at the coming of high tech industry . it controlled by computer closed-circuit feedback system ,to ensure the accuracy can meet +/-0.03 mm ;
2. phase-style feeding function : you can input 20 different groups of feeding length . each group provide 999 times stamping , meet the processing requirements of specified products ;
3. personal manual model : you can input 3 phase manual speed , it is convenient for operator to operate which can locationalize stamping dies precisely .
4. set the feeding length : you directly can input the feeding length in control panel to meet the distance when it needed ;
5. feeding unit : the roller adopts middle-hollow type,beiing light and with low inertia for electroplate ,the surface hardness is HRC 60°and finished chrome plated ,can enhance the abrasive resistance and long lifetime .
main specification :
model : NCF-300;
material width : 300 mm
material thickness : 0.2-2.2 mm
feeding length : 9999.99 mm
feeding speed : 20 m/min
power supply : 380v /415 v 3 phase
height of feeding line : 70-250 mm
machine size : 560*600*450
mechanical /pneumatic
contact supplier or email to admin@b2bgood.com for purchase help
