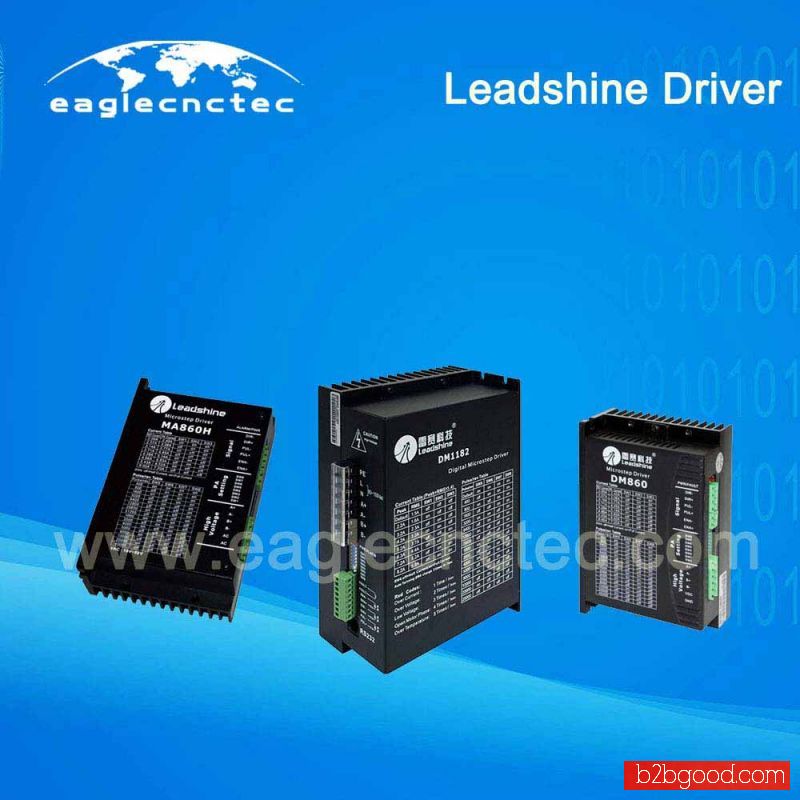

Leadshine MA860H is a high performance microstep driver based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different stepper motors, the driven motors can run with smaller noise, lower heating, smoother movement. It is suitable for driving 2-phase and 4-phase Nema stepper motors.

Tips: Another good choice on driver is YAKO stepper motor driver.

Features of MA860H stepper driver:

1) Good high speed performance

2) Output voltage is Max. 80VAC

3) Output current is Max. 7.2A

4) Self-adjustment technology

5) Pure-sinusoidal current control technology

6) Pulse input frequency is up to 300 KHz

7) TTL compatible and optically isolated input

8) Automatic idle-current reduction

9) 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev

10) Suitable for 2-phase and 4-phase motors

11) Support PUL/DIR and CW/CCW modes

12) Short-voltage, over-voltage, over-current and short-cicuit protection
