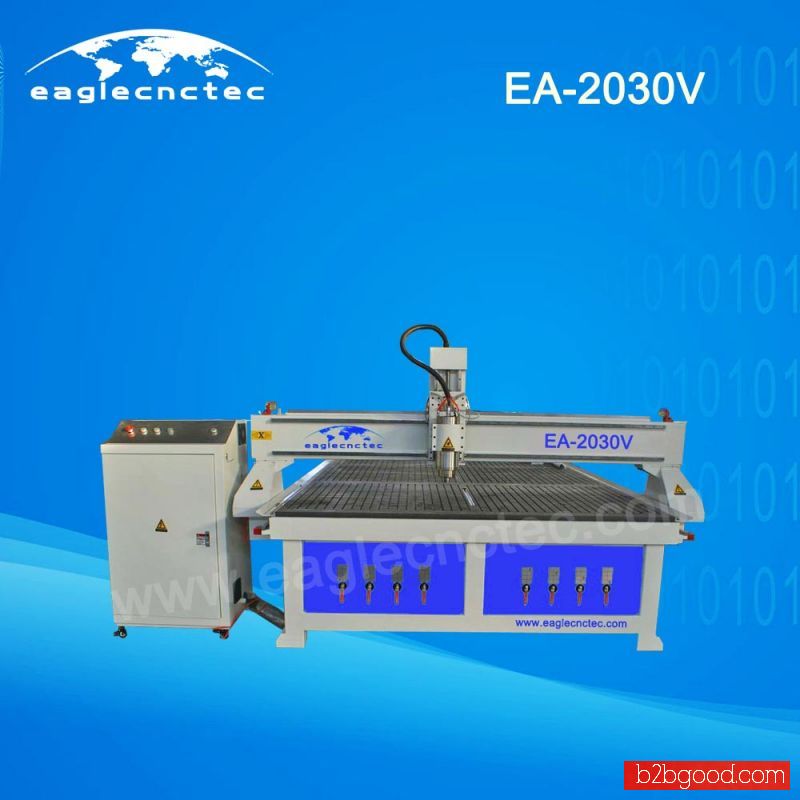

Router CNC 2030, also known as 6.5 by 10 feet router cnc machine, is used for machining full sheet material with Max. Size 2000×3000mm. It is commonly used in production of wood doors, artworks, wall art decorator panel, cabinet and so on. Router CNC 2030 is very popular with clients from Russia, Brazil, Tunisia and etc.

Application

Materials good for router cnc is solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

Field: Wood door, cabinet, office furniture etc.

Machining capacity: engraving, routing, cutting and boring.

Technical Parameter of China Router CNC

Working Size (XYZ) | 2000×3000×200mm

Max. Flying Speed | 35,000mm/min

Max. Cutting Speed | 18,000mm/min

Spindle | 4.5kw, water cooling, adjustable speed 0-18,000RPM, ER25

Engraving Tools Diameter Range | 3.175-16mm

Controlling System | DSP

Command | G code

Motor | Stepper, big torque

Work-holding | Vac-sorb and clamp

Vacuum Pump | Water ring, 5.5kw, air flow 230CBM/h

Transmission (XY) | Helical rack and pinion drive

Transmission (Z) | Rolling balls crew drive

Max. Power Consumption | 14kw

Power Supply | AC380V/50-60Hz, 3Ph 4 Wires

Net Weight | 1600KGS

Optional configuration for router cnc 2030

(1) Spindle power：6.0kw, 7.0kw, 9.0kw

(2) Cooling mode of spindle: air cooling

(3) Controller: Mach3, Weihong NK105G2 and NC studio card

(4) Driving motor: Servo or Hybrid Servo

(5) Vacuum pump: Air-ring type

Packing Details

EagleTec Router CNC machine is completely wrapped with plastic film to prevent being rusty, and then packed into free-fumigation wood case.
