起订:1个
供应:100000个
| 尺寸： | 105.5x64.5x23mm |
|---|---|
| 重量： | 0.073kg |
| 卖点： | 纯硬件，saler倍频处理技术 |
| 品牌： | 朗强 |
| 型号： | LKV363mini |

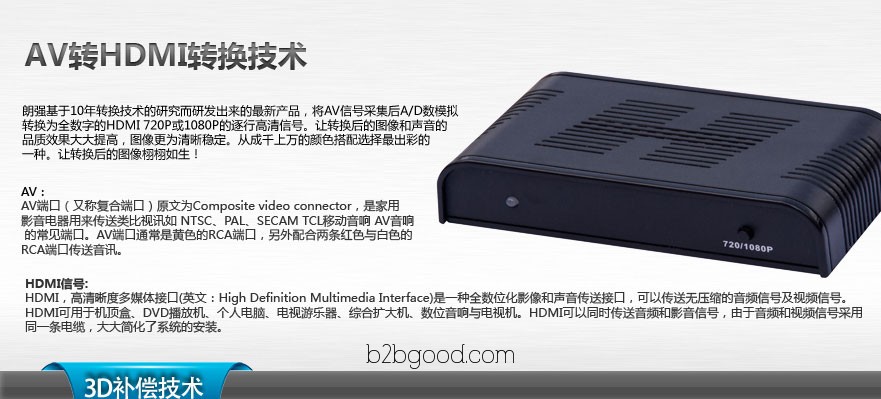

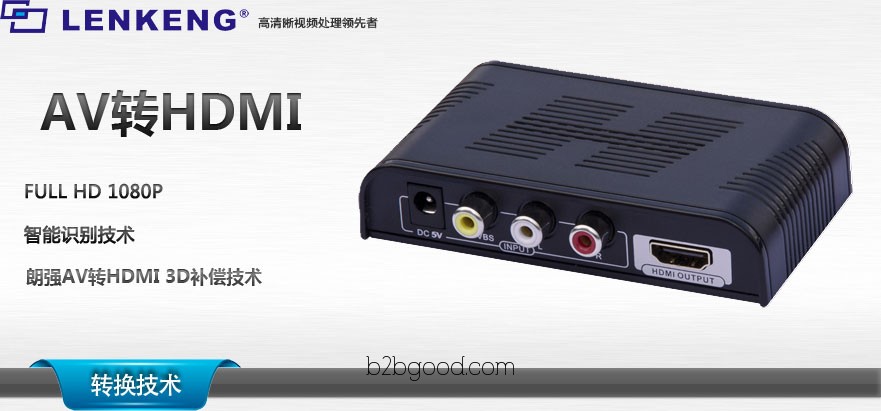

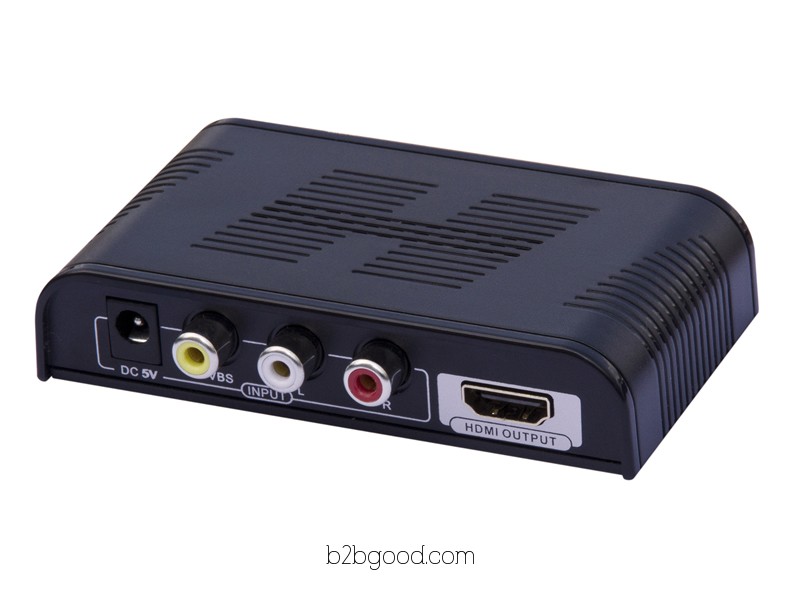

厂家批发最实惠HDMI转换器AV 转HDMI/cvbs转HDMI高清视频转换盒AV TO HDMI外贸最热销电子产品
深圳市朗强科技有限公司
联系人：何小姐
TEL：0755-82518370
CEL:18681585194
FAX：0755-82500201 QQ：420190386
公司地址：深圳市福田区上梅林广夏路3号金广夏文科园4楼西
| HD VIDEO ConVERTER User Manual MINI CVBS TO HDMI Converter Bring High-Definition to your life 1.0 INTRODUCTION
The MINI AV TO HDMI converter is a universal converter for analog composite input to HDMI 1080p (60HZ) output. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.
2.0 FEATURES
1. No need to install drivers, portable, flexible, plug and play;
2. Provide advanced signal processing with great precision,
colors, resolutions, and details;
3. Support PAL, NTSC3.58, NTSC4.43, SECAM,PAL/M, PAL/N
standard TV formats input;
4. Support HDMI 1080p or 720p output.
3.0 SPECIFICATIONS

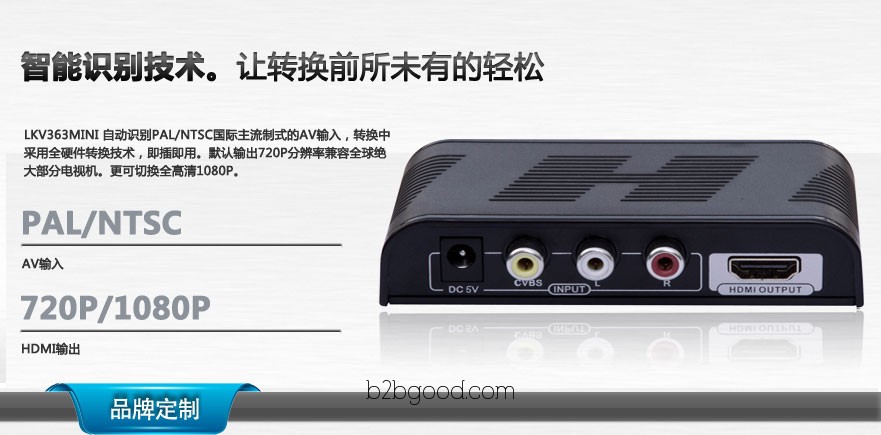

1. Input ports:3xRCA (Yellow, White, Red);
2. Output ports: 1xHDMI;
3. Dimensions (mm): 66(D) x55(W) x20(H);
4. Wight (g): 40;
5. Composite input: PAL, NTSC3.58, NTSC4.43,SECAM,
PAL/M,PAL/N;
6. HDMI output: 1080p60Hz, 720p/60Hz.
|
