Concertina wire, also known as razor wire or razor ribbon. Unlike traditional barbed wire, concertina wire features sharp, razor-like steel blades attached to a high-tensile wire core, creating a near-impenetrable obstacle. Understanding the different types is crucial for selecting the right level of security for your specific needs.

Concertina Wire Blade Style

BTO-10:

• Small coil diameter for lightweight security.
• Use for residential fence top protection.
• Easy to install on existing fences.

BTO-15:

• Medium coil size for balanced security.
• Suitable for medium-height perimeter fencing.
• Popular choice for private property protection.

BTO-22:

• Most popular concertina wire.
• Standard coil diameter for maximum coverage.
• Best option for high-security perimeter fencing.

BTO-30:

• Large coil diameter offers wider coverage.
• Perfect for military and industrial applications.
• Provides superior anti-climb security performance.

CBT-25:

• Flat wrap style resembles razor tape.
• Lightweight and easy to handle.
• Great for temporary security fencing setups.

CBT-60:

• Crossing type with tight blade pattern.
• Offers strong deterrent for perimeter fences.
• Suitable for commercial property security needs.

CBT-65:

• Common crossing concertina wire type.
• Used for border and prison fencing.
• Delivers anti-climb security protection.

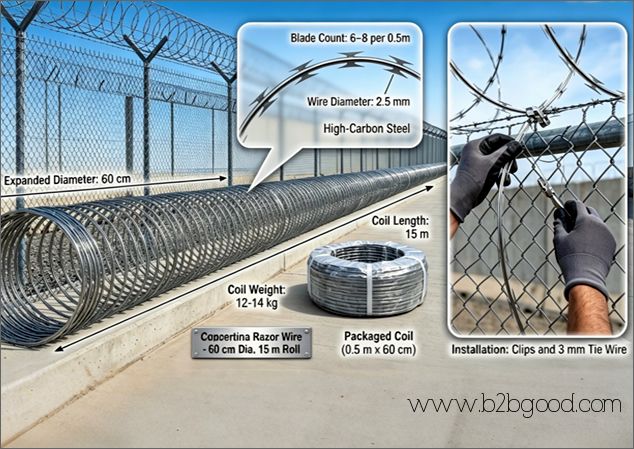

Concertina Wire (Razor Type) 60cm Diameter, 15m Roll - Custom Product Exported to Australia

• Wire Type: Concertina razor wire, coil diameter 60 cm
• Roll Diameter: 60 cm expanded diameter, standard installation size
• Roll Length: 15 m coil length for perimeter fencing
• Wire Material: High-carbon steel, 2.5 mm wire diameter
• Blade Count: 6-8 razor blades per 0.5 m length
• Coil Packaging: Single coil per 0.5 m x 60 cm packed unit
• Coil Weight: 12-14 kg per 15 m coil
• Coil Expansion: Expands to 60 cm diameter upon installation
• Installation Use: Suitable for 2-3 m high walls or fences
• Installation Method: Fixed with clips or 3 mm tie wire
• Project Applications: Military, commercial, industrial fences, up to 1 km per project

Customized Galvanised Concertina Razor Wire - 900mm Diameter Bulk Export Ukraine

• Coil Diameter: ≥900 mm coil diameter per standard specification
• Wire Diameter: 2.8-3.0 mm wire thickness range
• Zinc Coating: ≥140 g/m2 zinc for corrosion protection
• Tensile Strength: ≥1600 N/mm2 for structural integrity
• Coil Length: Standard length 15 m per coil
• Blade Spacing: 6-8 blades per 0.5 m length
• Coil Packaging: Bundled individually, 12-15 kg per roll
• Installation Use: Suitable for 2-3 m high fences
• Fixing Method: Installed with clips, tie wires, or brackets
• Environmental Resistance: Withstands -20°C to 60°C outdoor temperatures
• Applications: Commercial, industrial, military

High-Security BTO-17 Concertina Razor Wire - 1100mm Diameter Export Europe

• Coil Diameter: 1100 mm ±100 mm per standard specification
• Blade Type: BTO-17 with dimensions 17 mm x 34 mm x 15 mm
• Blade Thickness: 0.50 mm ±0.05 mm galvanized steel
• Blade Material: Galvanized steel Z200, zinc coating 200 g/m2
• Core Wire Diameter: 2.8 mm ±0.1 mm central wire
• Wire Coating: Z140, 140 g/m2 zinc-coated wire
• Tensile Strength: 1600-1700 MPa wire tensile capacity
• Number of Loops: 100 loops per coil
• Number of Clips: 7 galvanized clips per roll
• Weight per Roll: 33 kg per 1100 mm coil
• Coil Length: Standard 15 meters per coil
• Packaging: Bulk-packed for 1x40HQ container shipment
• Order Volume: 1x40HQ container for bulk delivery
• Cooperation Option: Long-term supply agreements available

Concertina Wire and 2D Fence for Reinforced Concrete Customized Export to Romania

• Wire Perimeter Length: 10,000 meters including tension wire
• Wire Installation Rows: 6 rows on Y-profile posts
• Wire Tensioners: Included tensioners for secure installation
• Galvanization Wire Standard: Hot-dip galvanized per LST EN ISO 9223
• Spiral Diameter: Non-tensioned coil diameter 700 mm minimum
• Longitudinal Element Width: Cutting element width 22 mm minimum
• Transverse Height: 14 mm minimum transverse height per coil
• Axis Spacing: Central axis spacing 25-50 mm
• Fence Product Type: 2D fence segments including fastenings
• Fence Length: 1500 meters of fence segments
• Fastenings Included: Bolts and fixings for posts supplied
• Mesh Size: Maximum mesh 80x13 mm or smaller
• Vertical Wire Diameter: Not less than 5 mm
• Horizontal Wire Diameter: Not less than 3.5 mm
• Galvanization Fence Standard: Hot-dip galvanized per LST EN 10223-7:2013
• Corrosion Category: Minimum corrosion category C3
• Coil Packaging: Bundled for bulk delivery to Romania
• Application: Reinforced concrete perimeter and fence installation
• Installation Method: Wire coils and segments fixed to Y-profiles
• Compliance: Materials conform to European technical standards

Custom Concertina Wire -- 36-Inch Diameter, 1000 Rolls Export Oman

• Blade Length: 22 mm per individual blade.
• Blade Width: 14 mm per blade.
• Blade Thickness: 0.5 mm steel thickness.
• Line Wire Diameter: 2.6-3 mm (10-12 Gauge).
• Coil Diameter: 36 inches per roll.
• Weight per Roll: 25 kg per coil.
• Wire Material: Mild steel, galvanized finish.
• Galvanization Standard: Zinc coating per industrial specification.
• Coil Packaging: Bulk-packed for container export.
• Coil Length: Standard 15 meters per roll.
• Blade Count per Coil: 100-120 loops per coil.
• Blade Spacing: 120-150 mm between each loop.
• Installation Use: Suitable for walls and perimeter fences.
• Environmental Resistance: Outdoor exposure temperature -20°C to 60°C.
• Container Load: Fits 1x40HQ container bulk shipment.
• Project Location: Exported to Oman, Middle East region.
• Roll Quantity: Total 1,000 rolls for shipment.
• Application: Security, industrial, commercial fencing projects.

FBBT Concertina and SBBT Razor Runner Wire - Custom Export Iraq

1. Product Type: Concertina and razor barbed wire for security

• Concertina Blade Type: Fish Hook Barbed Tape (FBBT) razor blades per coil
• Concertina Coil Diameter: 900 mm ±20 mm per coil
• Number of Spirals: 56 spirals per 900 mm coil
• Concertina Material: Stainless Steel SS304
• Concertina Quantity: 170 coils per shipment
• Razor Runner Blade Type: Short Blade Barbed Tape (SBBT) per wire
• Razor Runner Coil Length: 200 linear meters per coil
• Razor Runner Material: Stainless Steel SS304
• Razor Runner Quantity: 130 coils
• Coil Packaging: Bundled individually for container shipment
• Coil Weight: 25-35 kg per coil approximate
• Coil Expansion: Expands to designed diameter after installation
• Blade Spacing (Concertina): 50-80 mm per spiral
• Blade Spacing (Razor Runner): 100-150 mm per short blade
• Line Wire Diameter: 2.5-3 mm wire for razor runner
• Spiral Wire Diameter: 2.8-3 mm for concertina coil
• Blade Thickness: 0.5 mm per blade
• Coil Length (Concertina): Standard 15 meters per coil
• Blade Count per Coil: 100-120 loops per concertina coil
• Coil Volume: Approx. 0.06 m3 per concertina coil
• Weight per Linear Meter: 1.7-2.3 kg per meter
• Total Linear Meters (Concertina): 2,550 meters per shipment
• Blade Material Coating: Stainless steel corrosion-resistant finish
• Packaging: Carton or palletized per container requirements
• Container Load: 1x40HQ container bulk shipment
• Environmental Resistance: Withstands -20°C to 60°C
• Application: Military, industrial, commercial perimeter fencing
