Overview:

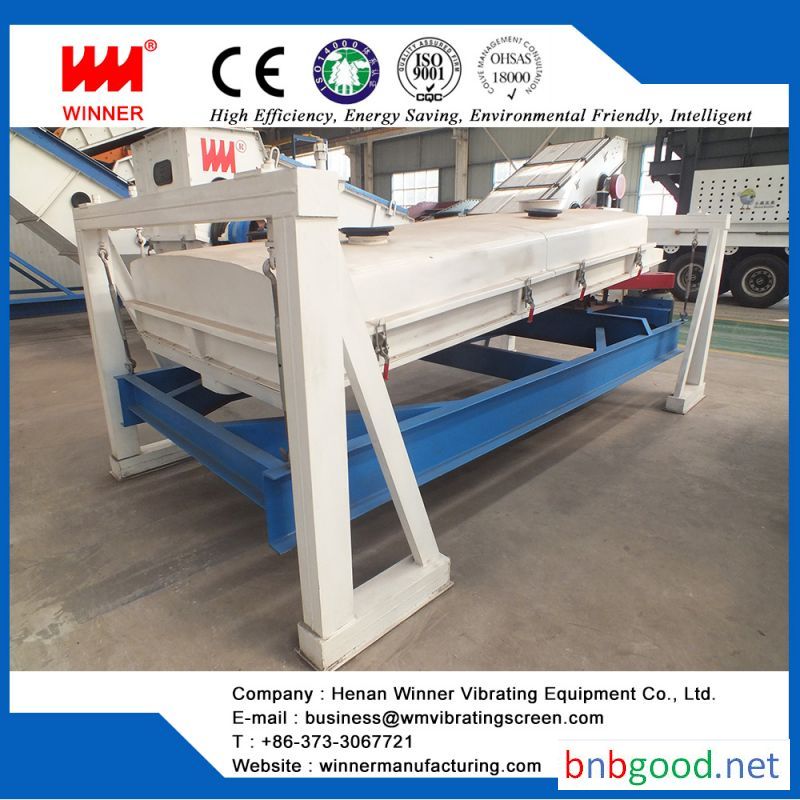

Mining plane rotary vibrating sieve for food is the most effective sieve screening equipment to simulate the principle of artificial sieve movement. The principle of plane rotary motion is adopted to reduce the basic load of the equipment. Meet all ultra-fine powder and granular materials, especially difficult to handle materials.

Applications :

Widely used in food, heavy alkali, large particles of urea, small particles of urea , reduced iron titanium powder, barite, food and spices, chemicals, plastics, mining, rubber, wood and plywood, Sugar, mining, paper and other industries.

Structure :

Mainly by the screen box, drive device, sieve frame, support frame and damping devices and other components.

Advantage :

It has the features of reasonable design, simple structure, stable operation, full-closed structure, high screening efficiency, high utilization ratio of screen, small space, convenient installation and processing, easy to be used in assembly line production, no pollution and low noise.

Operating Principle :

The main use of eccentric body so that the screen surface to do uniform cyclotron motion, And thus the probability of large screen, screen production of large, high-precision screening, screening machine on the material structure of its destructive small. Its trajectory in the feed-end for the horizontal circular motion in the length direction gradually become elliptical motion, and finally in the discharge side into a similar linear motion back and forth.

Features :

1. Mining plane rotary vibrating sieve for food output is 1-5 times the normal screening machine, high yield, low energy consumption.

2. Fully enclosed structure, dust is not flying, in line with environmental requirements.

3. Unique screen installation structure, cleaning more convenient, so that the screen high utilization rate, long life.

4. The flat rotary screen has three kinds of trajectories, such as circle, ellipse and straight line. It has good screening effect and does not destroy the original structure of the material. It is suitable for sieving and screening various materials.

5. According to the actual site using hanging structure to meet customer needs.

6. Mining plane rotary vibrating sieve for food can reach four layers of effective screening, the discharge port can be in accordance with customer demand for material.

Technical Parameter Table :

Model	Length*Width (mm)	Effective area displacement (mm)	Sieve Box Power (kw)	Motor Rotation Rate (rpm)
XCHX1021	1000×2100	63.5	1.5	960
XCHX1030	1000×3000	63.5	1.5	960
XCHX1236	1200×3600	76	2.2	960
XCHX1530	1500×3000	76	5.5	960
XCHX1536	1500×3600	76	5.5	960
