Data sheet of fluorescent illumination excitation wavelength
LED light source	LED lighting central wavelength	Excitation filter wavelength	Dichroic mirror wavelength	Emission filter wavelength
Blue	475nm	460-490nm	>500nm	>510nm
Royal Blue	450nm	420-480nm	>500nm	>510nm
Green	530nm	510-550nm	>570nm	>590nm
UV	365nm	330-380nm	>400nm	>420nm

With clients specific requirement, filters in Chroma, Semrock,Omega are optional.

Item No.

MF-BG-LED : Blue & Green

MF-RB-G-LED: Royal blue & Green

MF-B-UV-LED: Blue & UV

MF-RB-UV-LED: Royal blue & UV

MF-G-UV-LED: Green & UV

MF- BG-UV-LED: Blue & Green & UV

MF-RBG-UV-LED: Royal blue & Green & UV

Recommend Matched Fluorescein Application Range

Excitation LED lamp	Excitation filter wavelength	Suitable Fluorescein
UV	330-380nm	DAPI / Hoechst 33342&33258 / AMCA/AMCA-X / Alexa 350
Blue	460-490nm	GFP / EGFP / FITC / Alexa 488 / Cy2@ / Fluo-4 / FluorX@ / Fluoro-Jade, Malaria diagnostic
Green	510-550nm	PI / EB / EH
Royal Blue	420-480nm	Special for Tuberculosis (TB) Diagnose, Auramine O

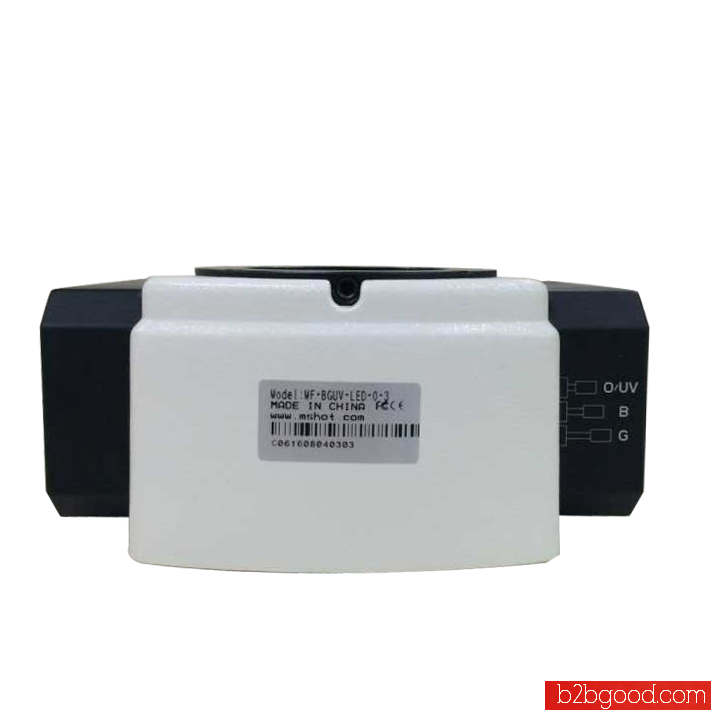

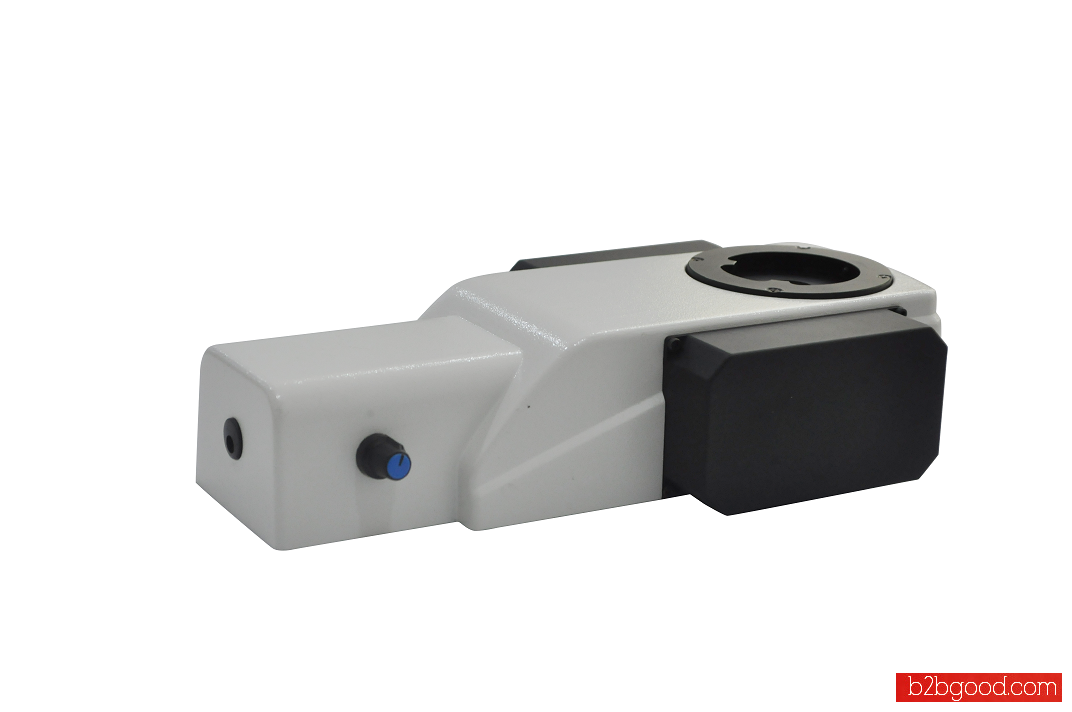

LED Fluorescence Illuminator

LED fluorescence illuminator is special designed for conventional inifinity optical system biological microscope upgrade to epi fluorescent microscope. The fluorescence illuminator combines multiple excitation groups in one module to provide blue, green and UV fluorescence wavelength choice for customers. Also it takes use of LED lamp as light source, the whole illumination is more brighter, convenience, user friendly and cost effective compared with mercury fluorescent illumination.

Features:

• High bright LED light source.
• Any color from blue, green and UV can be combined together.

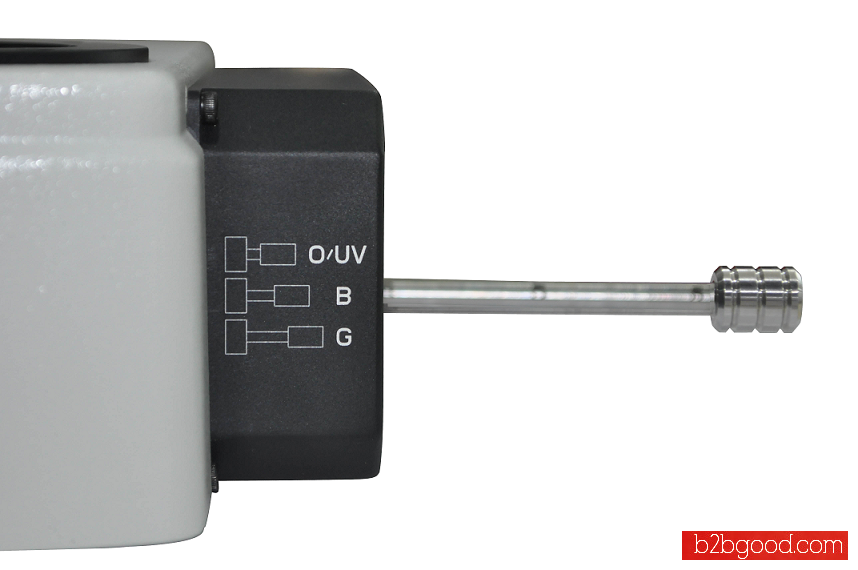

• Slider to transfer filter.
• Royal blue excitation group is optional.

Advantages:

• LED light source has a long working life, no need to replace lamp.
• No warm-up or darkroom required.
• Achieve multiple fluorescent observation.
• Specific wavelength with higher optical efficiency.
• Well fit to Olympus, Nikon, Leica, and Zeiss's microscope.

Benefits:

• No waiting and one stop installation to improve working efficiency.
• Save budget to buy a new fluorescence microscope.
• Compatible to most famous brands microscope, easy to achieve.
• Small and light weight, convenience to move and take.
• Can achieve GFP,TITC, PI, DAPI, etc by one unit.

Microbiology

TB Diagnosis (Tuberculosis, Auramine O fluorescent reagent, Royal blue excitation wavelength)

IHC and immunofluorescence

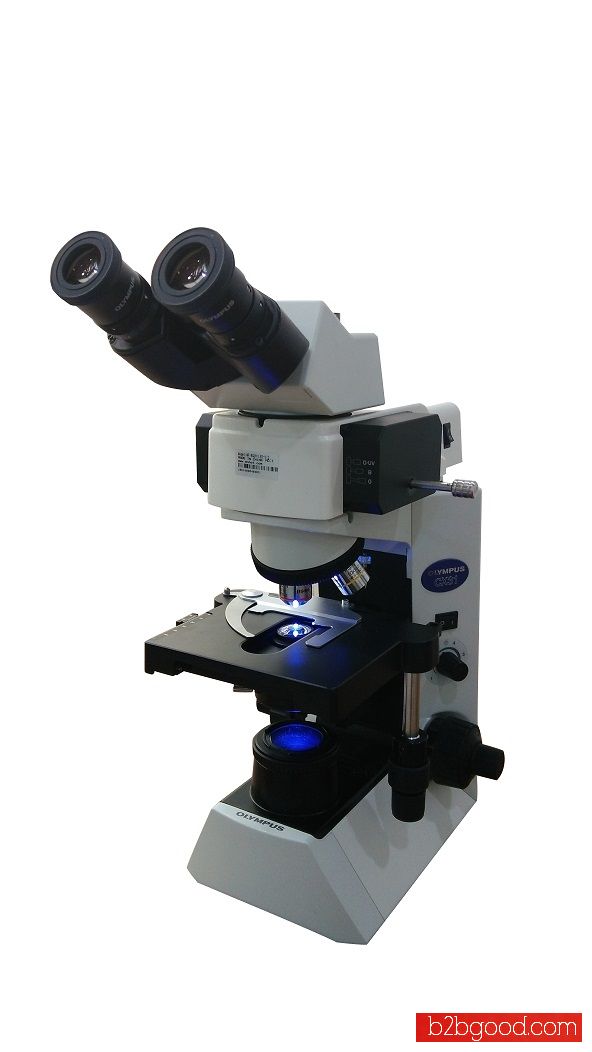

Matched microscopes

• Olympus CX22, CX23, CX31,CX41,BX43,etc
• Nikon E100, E200, Eclipse, etc
• Leica DM500, DM700
• Zeiss PrimoStar
