الصورة الكبيرة
===
توسيع شبكة ممر مصبغة ، الماس الصلب والألومنيوم ممر
المجلفن توسيع شبكات الصلب والألومنيوم والفولاذ المقاوم للصدأ توسيع شبكات تستخدم عادة في الممرات والأرضيات ، وتوسيع شبكات معدنية هي مناسبة جدا للاستخدام في مدارج المصنع ، ومنصات العمل والممرات ، لأنه من السهل أن تكون مقطعة إلى أشكال غير منتظمة ، ويمكن تركيبها بسرعة من خلال لحام أو الترباس الصدد . توسيع شبكة معدنية هو الأكثر عملية واقتصادية شبكة لوحة ، والتي يمكن أن تضمن قوة وسلامة سطح زلق ، تقريبا أي صيانة . نحن نقدم توسيع شبكات الصلب والمعادن للمشاة والمركبات الخفيفة ، فضلا عن غيرها من التطبيقات الحاملة . توسيع لوحة الصلب يوفر المزيد من التصميم الجرافيكي من شريط مصبغة .
Expanded metal walkway flooring mesh: made of Q195 low carbon steel plate, expanded metal mesh stretching machine once punched and stretched to form a diamond-shaped mesh surface, with uniform mesh and flat mesh surface. The mesh contact has a good anti-slip effect.
Material: low carbon steel plate
Thickness: 4.0mm 4.5mm 5.0mm 5.5mm 6.0mm 8.0mm
Gravity per square meter can reach 50KN
Surface: spray epoxy anti-rust primer, hot-dip galvanizing, electro-galvanizing, has good anti-rust effect and acid and alkali resistance, can withstand up to 50 years of wind and rain damage and ultraviolet radiation.
Expanded Steel Grating serves popularly in following constructions:
Ramps;
Flooring;
Platforms;
Walkways;
Treads;
Architectural facade, ceiling and other decorative uses.
Materials: Aluminum, carbon steel, stainless steel and other metals.
Grating Patterns: Diamond, triangle, scale hole, etc.
Specification: thickness:0.5mm-8mm
Hole width: 2.5mm-50mm
Hole length: 4.5mm-100mm
Openness: 0.5mm-8mm
Features
Expanded metal grating offers many advantages over bar grating. It is made of one continuous piece of material yielding a greater strength to weight ratio. There are no welded parts and the surface is naturally skid proof without further processing. The pattern and openings provides a wider range of load capacity gratings to meet your exact requirements giving greater economy to your project.
Expanded metal grating is the most practical and economical way to assure strength, safety, and a non-skid surface, .Expanded metal grating is ideal for use on plant runways, working platforms, and catwalks as it is easily cut into irregular shapes and can be installed quickly by welding or bolting.
This metal grating offers ease of fabrication, economy, strength, safety and are available in carbon steel , stainless steel and aluminum.
Application
As fences for walkway, tread plates, stair protection:
Walkways
Stairways
Catwalks
Platforms

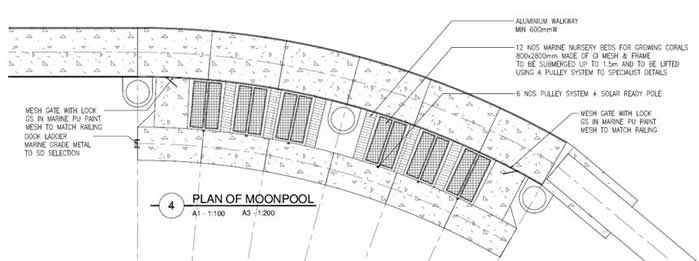

Aluminium walkway 600mmW – 3.1m(L) x 0.6m(W) x 6 nos.
Diamond grating "1.8mm thick plates 610mm wide walkway diamond steel 14 gauge , channel depth 127mm including all fixing as required", galvanized finish.
Note: 1.8mm thick is equivalent to 14 gauge.
Diamond hole walkway expanded mesh panels with steel frame
Diamond Hole Type Expanded metal walkway Wire Mesh
