Product overview:

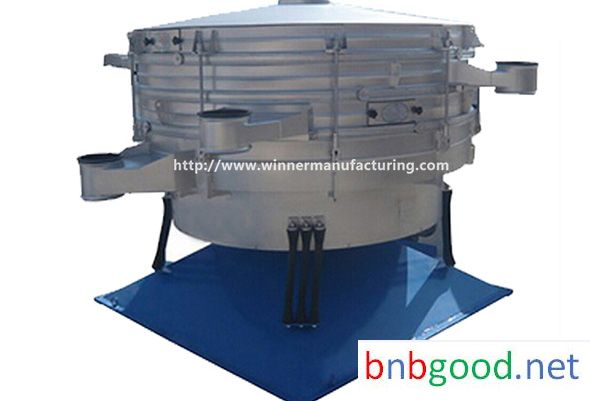

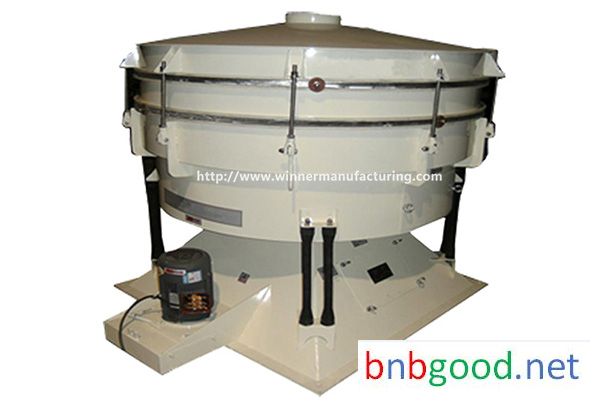

High efficiency YBS series swing sieve is designed to meet the large output, high density screening of manufacturers and special design of an efficient screening machine. It is effective to simulate the effective principle of artificial screening, in accordance with all fine and ultra fine range of powder and particulate materials, especially suitable for difficult to deal with the material.
Application：
Used in chemistry, food and spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, feed, fertilizer, sugar, salt, and other industries, and so on.
Structural principle
1.The basic rotary motion and artificial screening is similar. The eccentricity is adjustable from 25mm to 40mm, and the low speed V-belt drive is adjustable from 120 to 360 rpm;
2.The residence time of each product can be adjusted by the radial and tangential angle of the swing screen towards the drive axis;
3.Establish the level and throw the three-dimensional tumbling movement. The material is uniformly dispersed from the center to the outer edge over the entire screen so as to spread axially in a helical motion. Fine particles to complete the entire screening process;
4.The horizontal and vertical acceleration increases with the motion of the particles, and the particles close to the sieve size are successfully separated; the larger particles are transported to the exit and the outlet is controlled by an adjustable guide, which is Another factor in controlling material retention time;
5. The process repeated between each sieve layer;
Advantages:
1.Up to 5 times the unit area output: accurate to six level separation, screening efficiency as high as 90-95%.
2.The use of silicon rubber ball, ultrasonic high effect clear net device system, the mesh is not blocked, airtight dust, safe operation.
3.Unique grid design, the screen was used for a long time, changing the net fast only 3-5 minutes.
4.The acceleration is 4.5 times lower than the vibration sieve, screening parts to improve the life and maintenance to reduce.
5.Small noise : noise <75 db.
Technical parameter table:
|
Model |
Diameter |
Screening area |
Maximumlayers number |
Motor Power |
Bounce ball Screen |
Drum brush Screen |
Ultrasonic Screen |
|
YBS600 |
600 |
0.29 |
5 |
0.25 |
5 |
5 |
5 |
|
YBS1000 |
1000 |
0.71 |
5 |
1.5 |
5 |
5 |
5 |
|
YBS1200 |
1200 |
1.11 |
5 |
2.2 |
5 |
5 |
5 |
|
YBS1600 |
1600 |
1.83 |
5 |
2.2 |
5 |
5 |
5 |
|
YBS2000 |
2000 |
2.62 |
5 |
2.2 |
5 |
5 |
5 |
|
YBS2400 |
2400 |
3.63 |
5 |
5.5 |
5 |
5 |
5 |
|
YBS2600 |
2600 |
5.31 |
5 |
5.5 |
5 |
5 |
5 |
